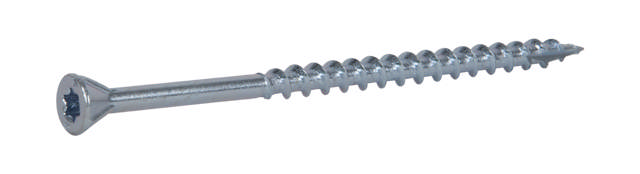

Chipboard screw for wooden joists, TX drive, bright zinc plated
-
ESSVE Particleboard screws are intended for the installation of against particle-, panel-, plywood- or flooring grade chipboard indoors against wooden joists.
-
The screw is produced by hardened carbon steel with bright zinc plated surface treatment. It is equipped with a TX20 drive. The head has four cutting grooves that countersink the screw, leaving a smooth surface without splinters. The tip has a fiber-cutting edge that provides lower driving torque and minimizes cracking.
-
A screwdriver with a depth stop should be used for quick and efficient installation. Recommended rpm: 30-75 mm 2000-2800/min.
Technical Specification
| Application environment | Indoors |
| Approvals | CE |
| Head shape | Countersunk |
| Main Materials | Steel |
| Corrosion resistance class | C1 |
| Material | SAE1018 |
| Surface treatment | Zinc plated |
Dokument
| Certificate |
|---|
| General Product Safety Regulation (GPSR) |
| Declaration of performance |
| DoP-Screw-EN14592 [EN] |
| Product Data Sheet |
| Product data sheet |
