ESSVE GXL Facade plug is designed for installation in most materials such as lightweight concrete, also known as Leca, Ytong, Siporex, blue concrete etc, concrete, hollow brick, hollow concrete slabs, natural stone, solid brick, hollow brick and Sandlime brick etc. It is especially suitable for e.g. stud installation for exterior insulation, installation with pressure-treated wood and installation of interior fittings.

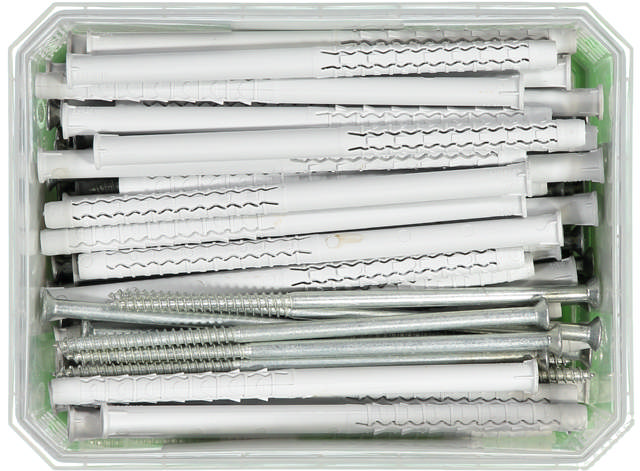

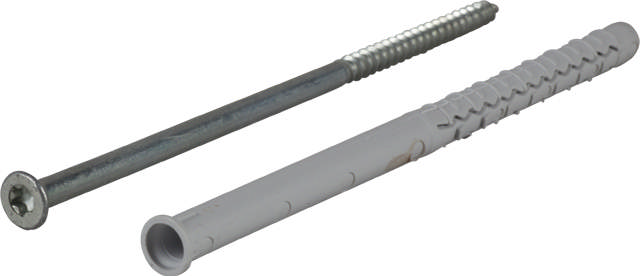

GXL consists of screws and plugs. The plug has a four-part expansion zone. This means expansion becomes greater and more friction is achieved, which creates a very good load value. When installed in hollow concrete slabs the plug creates a “ball"". The plug’s length means that expansion takes place at great depth and the load value is further improved, especially in porous materials, if installation is performed as deep as possible. The facade plug’s screw must always be screwed in. The plug’s anti-rotation lugs prevent the plug from rotating in the hole during assembly. The plug is made of first class newly produced nylon, with an usage temperature from -40°C up to +100°C. The screws are made of steel of strength grade 5.8 or stainless steel acid proof A4.

See mounting instructions below.
