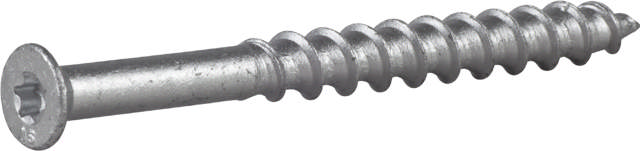

LIGHT WEIGHT CONCRETE SCREW COUNTER SUNK 8X90 CS

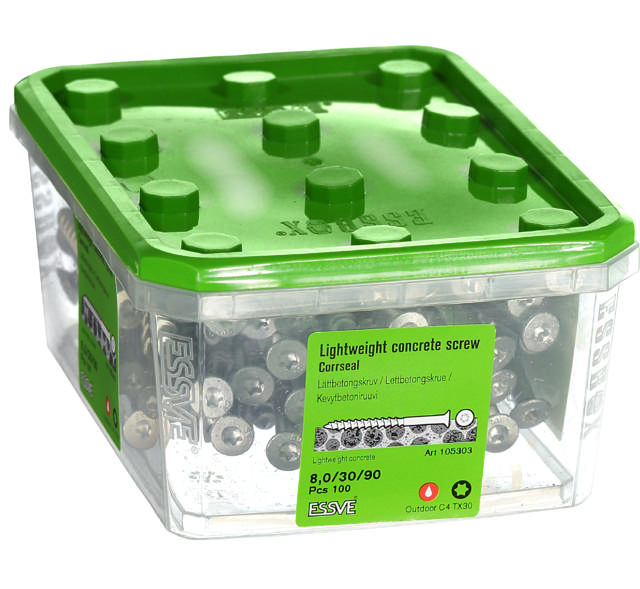

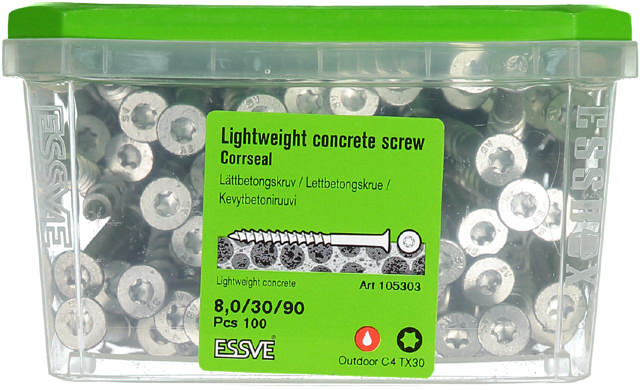

Package information

Item no. 105303
Package PC
PackageType ESSBOX 304
Content 100
Ordered in multiples of 1
EAN 7317761030454
NOBB nr 29841590
Pallet quantity 256
Depth 180
Width 135
Height 80
Weight 2.191
Volume 1.944

The ESSVE Lightweight Concrete Screw is used for anchoring in porous materials such as lightweight concrete, outdoors. It can be used for mounting wooden studs and steel joists, sill installation, securing insulation, and more.

The ESSVE Lightweight Concrete Screw is made of hardened steel with a Corrseal surface finish, C4. The screw has a TX bit and is equipped with cutting grooves to minimize the risk of over-tightening and facilitate countersinking into wood.

  • For outdoor use in porous materials
  • No pre-drilling required

The lightweight concrete screw is screwed directly into the lightweight concrete without pre-drilling. When installing, a torque screwdriver and low speed on the screwdriver are recommended to avoid over-tightening the screw, which can cause the thread to be damaged and the load capacity to be reduced. When securing insulation, the ESSVE Insulation Holder Washer can be used.

Technical Specification

Anchoring depth 60
Application environment Outdoors
Head shape Countersunk
Corrosion resistance class C4
Diameter [mm] 8
Diameter of head 12
Length 90
Fixture thickness 30
Material to install in Lightweight concrete
Standard anchoring depth light concrete 60
Surface treatment CorrSeal
Thread length 60
Type of bits TX30
