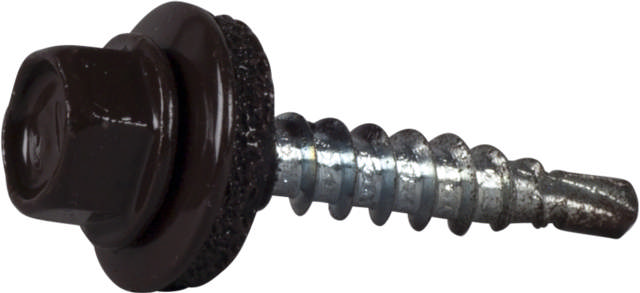

- ROOFING SCREW 4,8X28 DRILL POINT HEX WASHER RAL8017

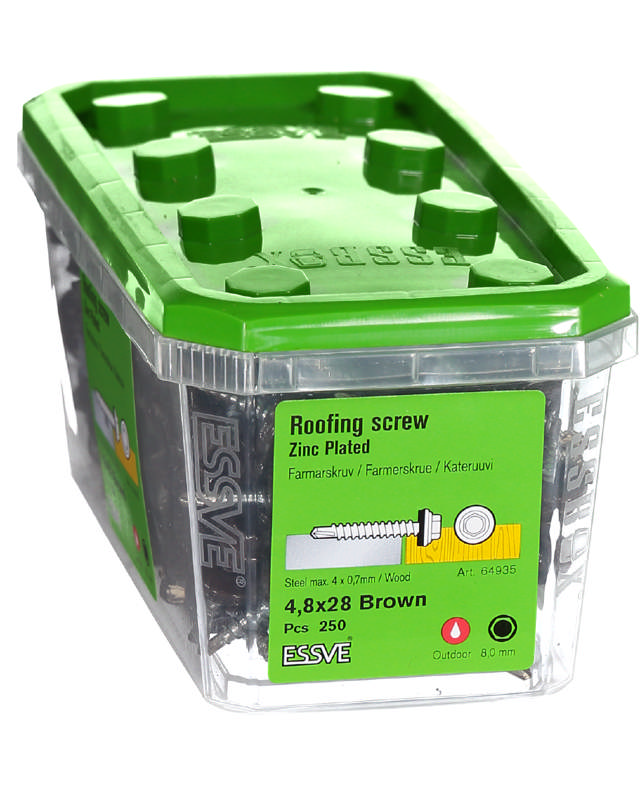

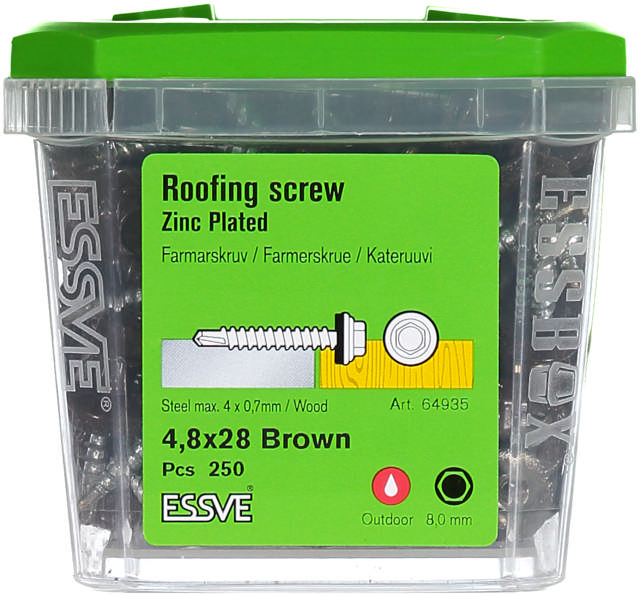

Package information
| Number | 64935 |
| Package | PC |
| PackageType | ESSBOX 204 |
| Content | 250 |
| EAN | 7317761028161 |
| NOBB nr | 30082861 |
| Pallet quantity | 288 |
| Depth | 180 |
| Width | 90 |
| Height | 80 |
| Weight | 1.332 |
| Volume | 1.296 |
-
ESSVE Roofing screw designed for installation profiled plates against wood and sheet-against-sheet (overlap).
-
The screw is produced in hardened carbon steel with bright zinc plated surface treatment and polyester powder coated. Galvanized steel washer with EPDM seal. Also available in stainless steel with stainless steel washer with EPDM seal. Fitted with hex head.
-
You must ensure the screw is not overtightened during installation to prevent damage to sealing washer. Recommended speed: 1800-2500/min
Technical Specification
| Application environment | Outdoors |
| Approvals | CE,ETA |
| Color code RAL | RAL8017 |
| Color | Brown |
| Head shape | Hexagon head |
| Main Materials | Steel |
| Corrosion resistance class | C3 |
| Diameter [mm] | 4.8 |
| Diameter of head | 10 |
| Diameter rubber washer | 14 |
| Drill capacity min | max 2 |
| Length | 28 |
| material rubber washer | Zink plated steel with rubber seal |
| Material | SAE1018 |
| Material to install in | Wood |
| Number of screws per m² | 8 |
| Recommended rpm | 1800-2500 |
| Socket | 8 mm |
| Surface treatment | Coated |
| Thread length | 24 |
| Approval |
|---|
| ETA-17/0139 |
| Certificate |
| General Product Safety Regulation (GPSR) |
| Declaration of performance |
| DoP-170139 (EN) |
| Product Data Sheet |
| Product sheet |
