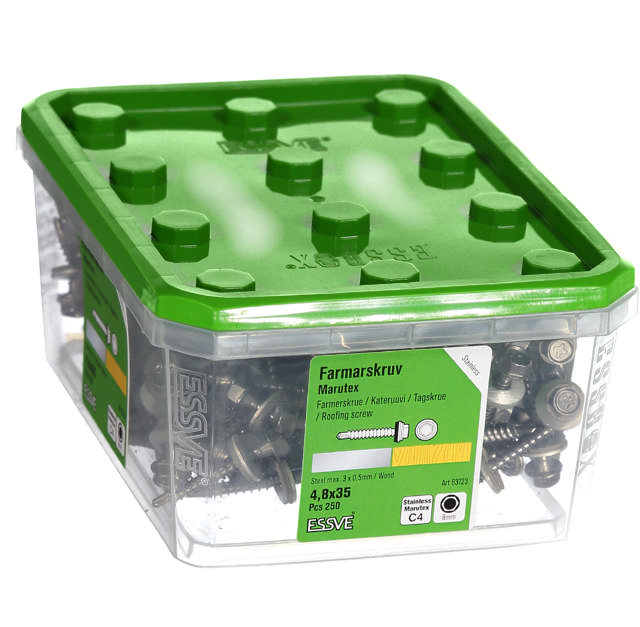

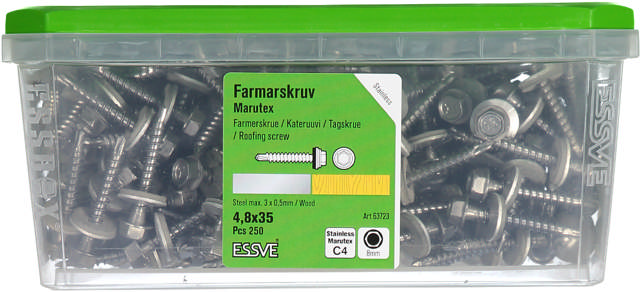

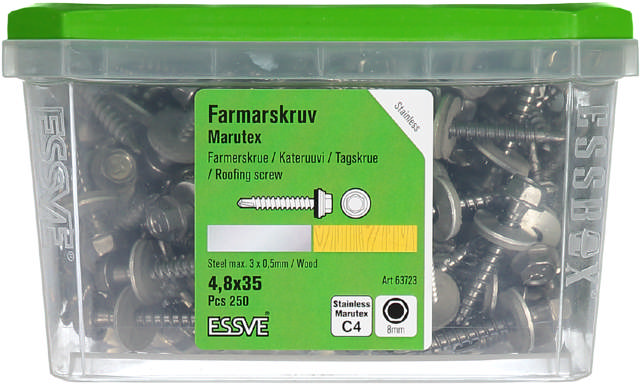

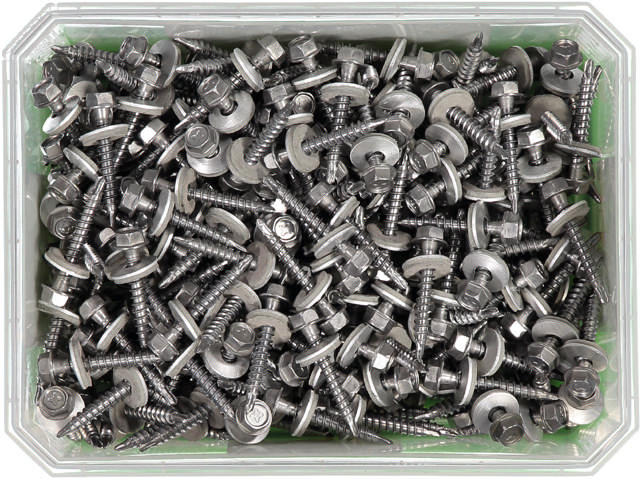

- ROOFING SCREW 4,8X35 DRILLTIP HEX HEAD WASHER A2
Package information
| Item no. | 63723 |
| Package | PC |
| PackageType | ESSBOX 304 |
| Content | 250 |
| Ordered in multiples of | 1 |
| EAN | 7317761203049 |
| NOBB nr | 21968078 |
| Pallet quantity | 320 |
| Depth | 180 |
| Width | 135 |
| Height | 80 |
| Weight | 1.363 |
| Volume | 1.944 |
-
ESSVE Roofing screw designed for installation profiled plates against wood and sheet-against-sheet (overlap).
-
The screw is produced in hardened carbon steel with bright zinc plated surface treatment and polyester powder coated. Galvanized steel washer with EPDM seal. Also available in stainless steel with stainless steel washer with EPDM seal. Fitted with hex head.
-
You must ensure the screw is not overtightened during installation to prevent damage to sealing washer. Recommended speed: 1800-2500/min
Technical Specification
| Application environment | Outdoors |
| Head shape | Hexagon head |
| Main Materials | Stainless steel |
| Corrosion resistance class | C5 |
| Diameter [mm] | 4.8 |
| Diameter of head | 10 |
| Diameter rubber washer | 14 |
| Drill capacity min | max 2 |
| Length | 35 |
| material rubber washer | Stainless steel with EPDM sealing washer |
| Material | Marutex |
| Material to install in | Steel, Wood |
| Number of screws per m² | 8 |
| Recommended rpm | 1800-2500 |
| Socket | 8 mm |
| Thread length | 31 |
| Approval |
|---|
| ETA‑17/0139 – ESSVE Fastening screws for metal members and sheeting (EN) |
| Certificate |
| General Product Safety Regulation (GPSR) |
| Declaration of performance |
| DoP-170139 (EN) |
| Product Data Sheet |
| Product data sheet |
