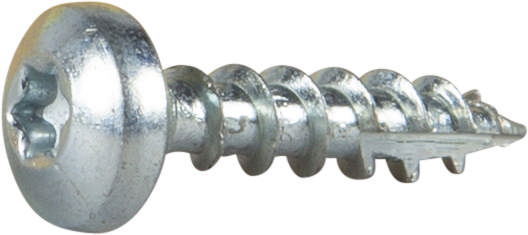

    WOOD SCREW FULL THREAD PAN HEAD 3,5X16 EZP TX10

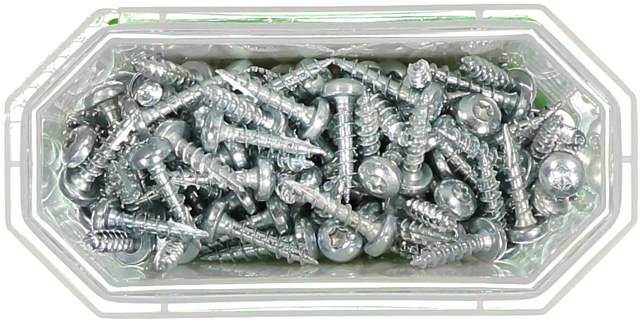

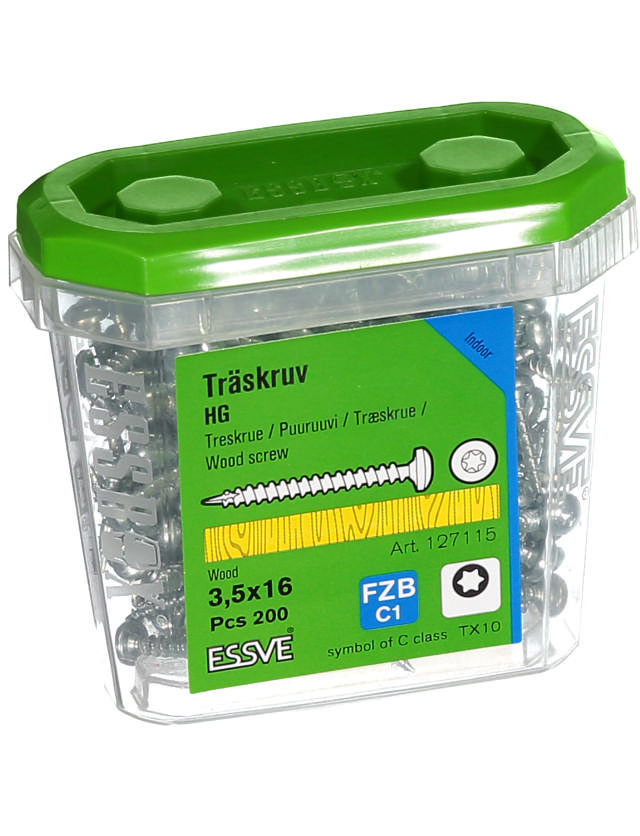

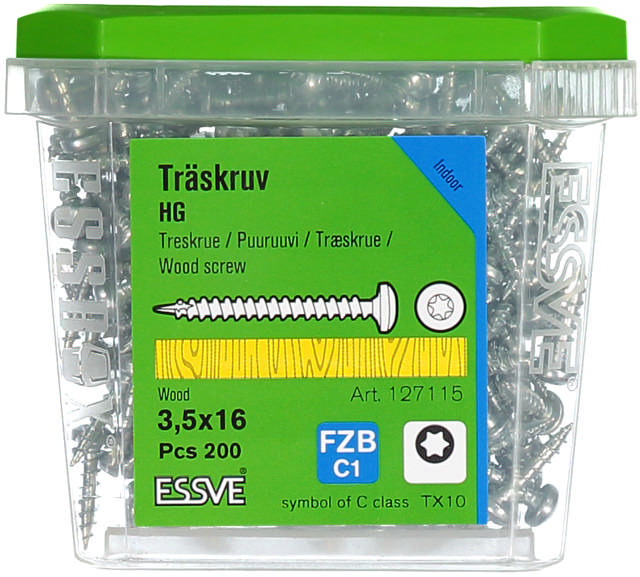

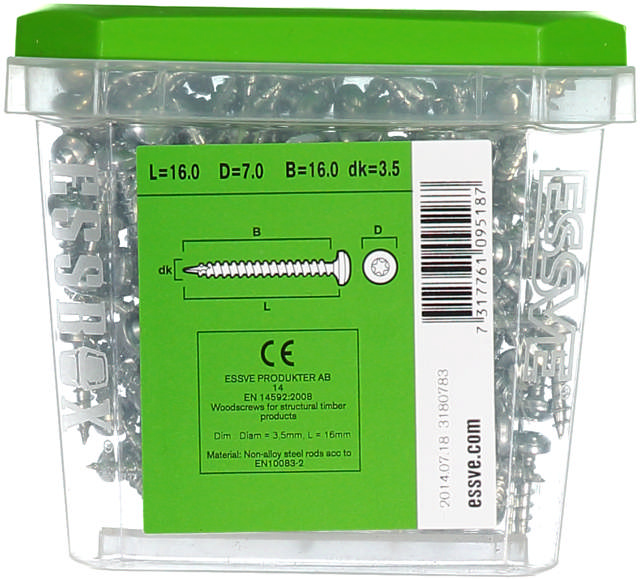

    Package information

    Item no. 127115
    Package PC
    PackageType ESSBOX 102
    Content 200
    Ordered in multiples of 1
    EAN 7317761095187
    NOBB nr 48384874
    Pallet quantity 1536
    Depth 45
    Width 90
    Height 80
    Weight 0.232
    Volume 0.324

    ESSVE full thread wood screw with pan head intended for most installation work in wood, chipboard, plywood, plastic, plugs, etc. indoors.

    The screw is produced in hardened steel with bright zinc plated surface treatment for indoor environments. It is equipped with 1 fibre cut in the tip, which gives the screw a low drive-in torque in wood and minimises the risk of splintering. ESSVE full thread wood screw conforms to the CE requirement according to EN 14592. The screw is equipped with a TX-bit drive.

    Recommended rpm: 400-1200/min.

    Technical Specification

    Application environment Indoors
    Approvals CE
    Core diameter 2.2
    Head shape Pan head
    Main Materials Steel
    Corrosion resistance class C1
    Diameter [mm] 3.5
    Diameter of head 7
    Length 16
    Material SAE1022
    Material to install in Wood
    Recommended rpm 400-2000
    Surface treatment Zinc plated
    Thread length 16
    Type of bits TX10
