- FRAME CONNECTOR SLEEVE 60MM
Package information
| Item no. | 10003674 |
| Package | PC |
| PackageType | Zip-lock poly bag 7 cm |
| Content | 2 |
| Ordered in multiples of | 10 |
| EAN | 7317761942092 |
| NOBB nr | 60124271 |
| Pallet quantity | 3600 |
| Depth | 10 |
| Width | 70 |
| Height | 145 |
| Weight | 0.133 |
| Volume | 0.102 |
-

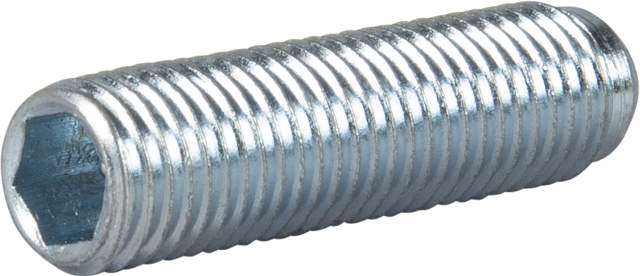

ESSVE Programa Frame sleeve 60 mm is designed for series connection of window and door frames in wood, steel and aluminium.
-
ESSVE Programa Frame sleeve 60 mm has an M16 thread adapted for the predrilled 14 mm holes in the frame. One end of the sleeve is fitted with a 10 mm hex key slot. Installation is best done with ESSVE Combined installation and adjusting key KMN, ESSVE Universal key UN-T or a standard hex key.
Technical Specification
| Corrosion resistance class | C1 |
| Drill bit diameter | 14 |
| Material to install in | Wood |
| Part of frame installation system | Programa |
| Surface treatment | Zinc plated |
| Type of bits | HEX BITS 10 |
