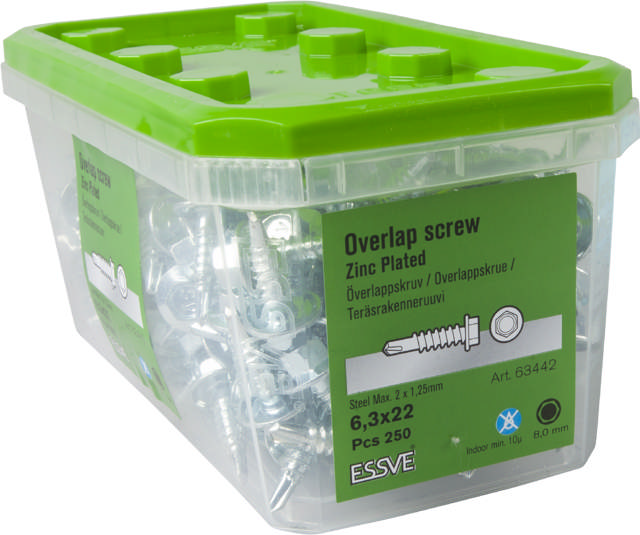

- OVERLAP SCREW WITH RELEASE HEXAGON HEAD 6,3X22 EZP
Package information
| Item no. | 63442 |
| Package | PC |
| PackageType | ESSBOX 204 |
| Content | 250 |
| Ordered in multiples of | 1 |
| EAN | 7317761201380 |
| NOBB nr | 11353695 |
| Pallet quantity | 288 |
| Depth | 180 |
| Width | 90 |
| Height | 80 |
| Weight | 1.537 |
| Volume | 1.296 |
-

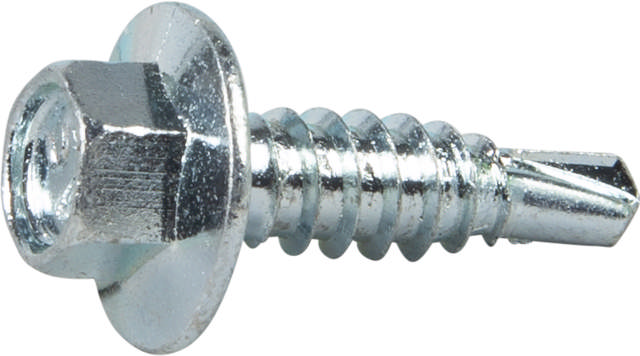

ESSVE Overlap screw with release designed for installation of sheet-metal on beams, sheet-metal on light beams, and sheet-against-sheet (overlap) indoors.
-
The screw is produced in hardened carbon steel with bright zinc plated surface treatment. It is equipped with hex head.The screw is self drilling and tapping. Release means the part of the screw below the head which has no thread so that it can rotate in the attached plate so that the plates are drawn together.
-
A screwdriver with a depth stop should be used for quick and efficient installation. Recommended rpm: 1800-2500/min
Technical Specification
| Application environment | Indoors |
| Approvals | CE,ETA |
| Core diameter | 3.9 |
| Head shape | Hexagon head |
| Main Materials | Steel |
| Corrosion resistance class | C2 indoor |
| Diameter [mm] | 6.3 |
| Diameter of head | 15 |
| Drill capacity min | 1 - 2,5 |
| Length | 22 |
| Fixture thickness | 12 |
| Material | SAE1022 |
| Material to install in | Steel |
| Recommended rpm | 1800-2500 |
| Socket | 8 mm |
| Surface treatment | Zinc plated |
| Thread length | 14 |
| Approval |
|---|
| ETA-17/0139 |
| Certificate |
| General Product Safety Regulation (GPSR) |
| Declaration of performance |
| DoP-170139 (EN) |
| Product Data Sheet |
| Product data sheet |
