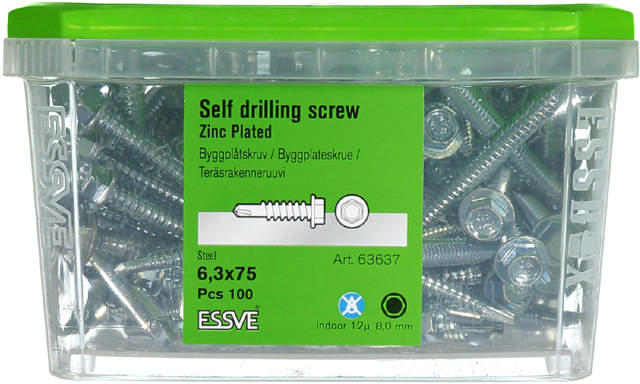

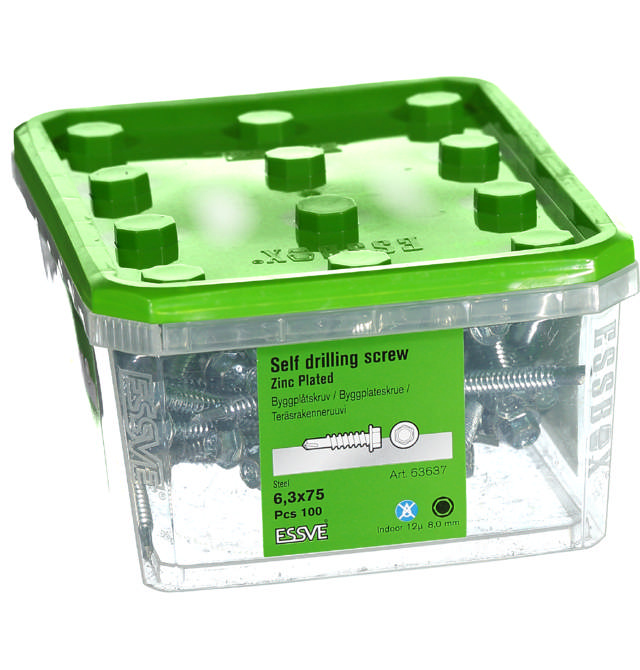

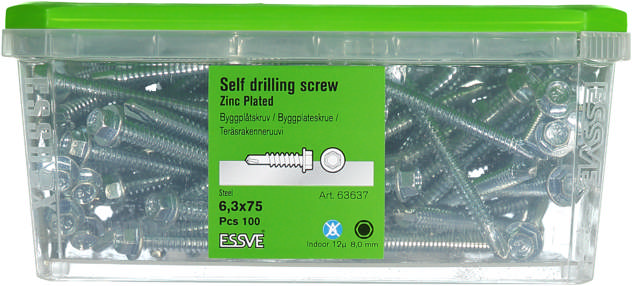

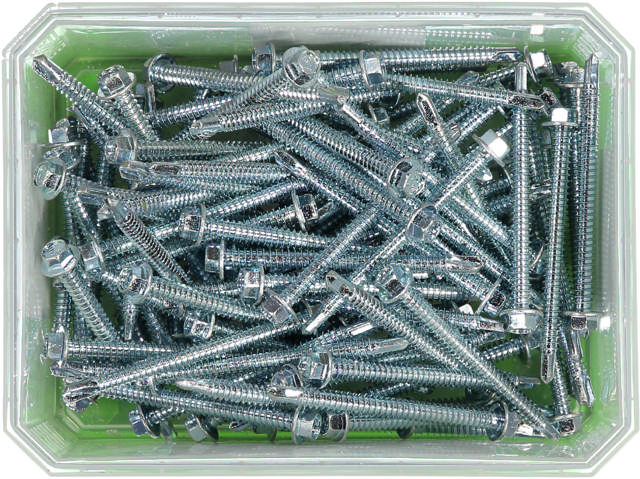

- SHEET METAL DRILL SCREW 6,3X75 HEX HEAD PH2 EZP
Package information
| Item no. | 63637 |
| Package | PC |
| PackageType | ESSBOX 304 |
| Content | 100 |
| Ordered in multiples of | 1 |
| EAN | 7317761202660 |
| NOBB nr | 21235197 |
| Pallet quantity | 192 |
| Depth | 180 |
| Width | 135 |
| Height | 80 |
| Weight | 1.485 |
| Volume | 1.944 |
-
ESSVE self drilling screw designed for joining two or more sheets or installing sheets on thinner sections indoors.
Article number 63632 does not have a PH recess due to improved drilling capacity.
-

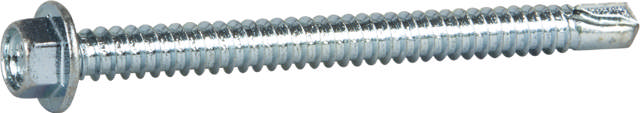

The screw is produced in hardened carbon steel with bright zinc plated or C4 class Silver CorrSeal surface treatment. It is equipped with hex head and Philips crosshead Ph2. The screw is self drilling and tapping.
-
A screwdriver with a depth stop should be used for quick and efficient installation. Recommended rpm: 1200-2200/min.
Technical Specification
| Application environment | Indoors |
| Approvals | CE,ETA |
| Head shape | Hexagon head |
| Main Materials | Steel |
| Corrosion resistance class | C2 indoor |
| Diameter [mm] | 6.3 |
| Diameter of head | 12.7 |
| Drill capacity min | 1,5 - 6 |
| Length | 75 |
| Material | SAE1022 |
| Material to install in | Steel |
| Socket | 8 mm |
| Surface treatment | Zinc plated |
| Thread length | 70 |
| Type of bits | PH2 |
| Approval |
|---|
| ETA‑17/0139 – ESSVE Fastening screws for metal members and sheeting (EN) |
| Certificate |
| General Product Safety Regulation (GPSR) |
| Declaration of performance |
| DoP-170139 (EN) |
| Product Data Sheet |
| Product data sheet |
