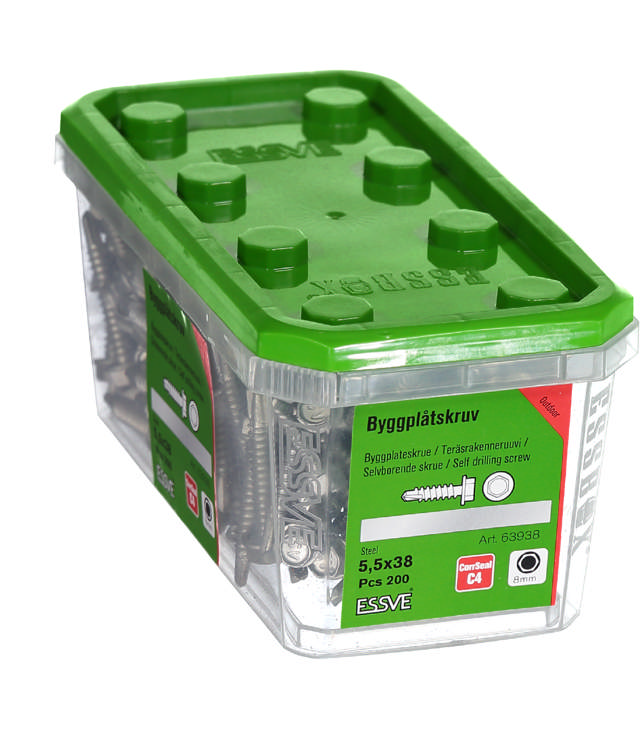

- SHEET METAL DRILL SCREW 5,5X38 HEX HEAD CORRSEAL
Package information
| Item no. | 63938 |
| Package | PC |
| PackageType | ESSBOX 204 |
| Content | 200 |
| Ordered in multiples of | 1 |
| EAN | 7317761255031 |
| NOBB nr | 45836174 |
| Pallet quantity | 288 |
| Depth | 180 |
| Width | 90 |
| Height | 80 |
| Weight | 1.292 |
| Volume | 1.296 |
-
ESSVE Self-drilling screw without bonded washer designed for installing the sheet-metal on beams, sheet-metal on light beams, etc., indoors/outdoors.
-
The screw is produced in hardened carbon steel with bright zinc plated or C4 class Silver CorrSeal surface treatment. It is equipped with hex head.The screw is self drilling and tapping.
-
A screwdriver with a depth stop should be used for quick and efficient installation. Recommended rpm: 1200-2200/min.
Technical Specification
| Application environment | Outdoors |
| Approvals | CE,ETA |
| Head shape | Hexagon head |
| Main Materials | Steel |
| Corrosion resistance class | C4 |
| Diameter [mm] | 5.5 |
| Diameter of head | 10.5 |
| Drill capacity min | 1,5 - 5 |
| Length | 38 |
| Material | SAE1022 |
| Material to install in | Steel |
| Socket | 8 mm |
| Surface treatment | CorrSeal |
| Thread length | 30 |
| Approval |
|---|
| ETA-17/0139 |
| Certificate |
| General Product Safety Regulation (GPSR) |
| Declaration of performance |
| DoP-170139 (EN) |
| Product Data Sheet |
| Product data sheet |
| Technical Document |
| CorrSeal coating test report, class C4(15) according to EN 14592:2022 |
