    5. DRIVE IN POST TYPE A 100X100MM
    272EC8EB1B1CEF1003A8EED6252C51EC
    1C028312907DCF7DA51136B408BA043D

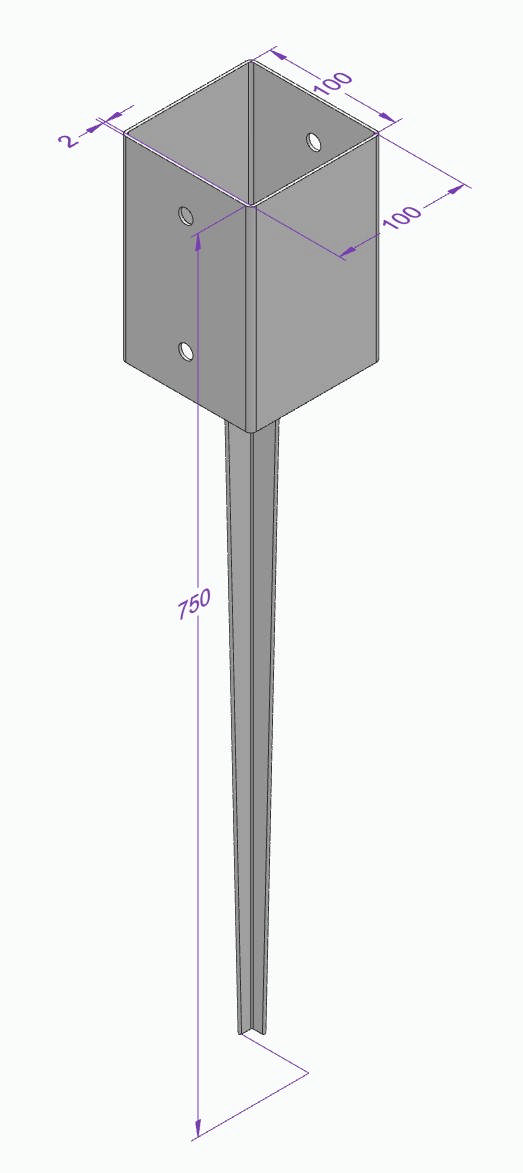

    DRIVE IN POST SUPPORT TYPE A 100X100MM, I=750MM

    Package information

    Item no. 452326
    Package PCS
    Content 1
    Ordered in multiples of 1
    EAN 7317761953630
    NOBB nr 60111336
    Pallet quantity 90
    Depth 100
    Width 100
    Height 750
    Weight 2.58
    Volume 7.5

    ESSVE Post spike designed for anchoring fence posts and basic timber structures. A simpler alternative to Post bases.

    Made of 2.0 mm hot dip galvanized sheet steel and fitted with 4 x Ø11.0 mm holes.

    The post spike is driven into the ground. A suitably sized wooden block is used as a driving block to facilitate installation. The wooden posts are screwed in position using suitable screws in the four holes.

    Technical Specification

    Application environment Outdoors
    Bolt hole diameter Column shoe 11
    Bolt holes column shoe 4
    Depth 100
    Corrosion resistance class C3
    Diameter bolt hole 11
    Diameter screw-/nailhole 11
    Length 750
    Height 150
    Number of bolt holes 4
    Surface treatment Hot Dip Galvanized
    Thickness 2
    Width 100
    Certificate
    General Product Safety Regulation (GPSR)
    Product Data Sheet
    Product data sheet
    Technical Document
    452326_drawing
